Introduction to Models

The following sections provide an overview of the various models I offer, both modern and historic. Most of these can be selected with a choice of woods and decorative appointments, string scales and spacing as well as neck profiles. Specific instruments are usually available right away from my shop (see the list at the bottom of this page or call/email). Otherwise all models can be commissioned. For commissions, I engage in a thorough dialogue with the client to provide an instrument exactly tailored to the individual musician's preferences of tonality and playability. Please contact me for lead times and prices.

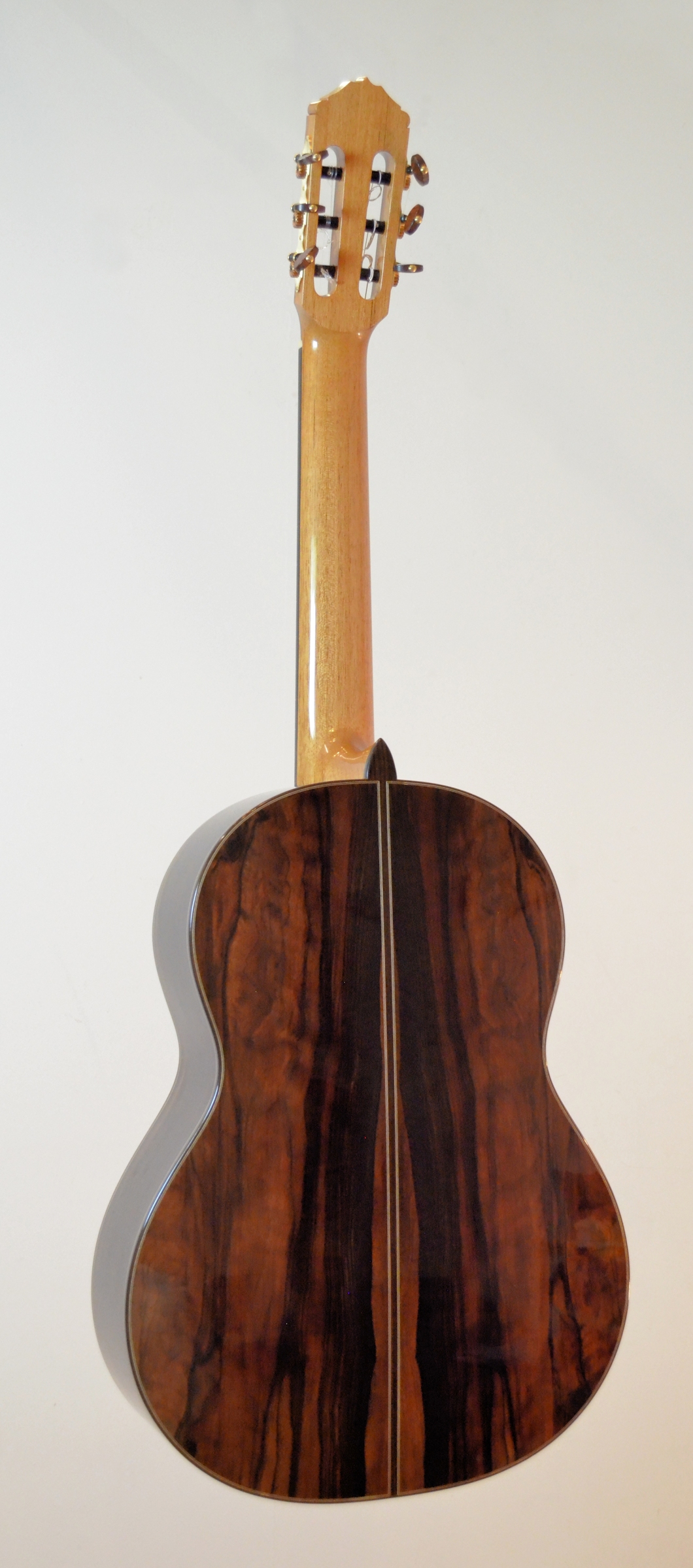

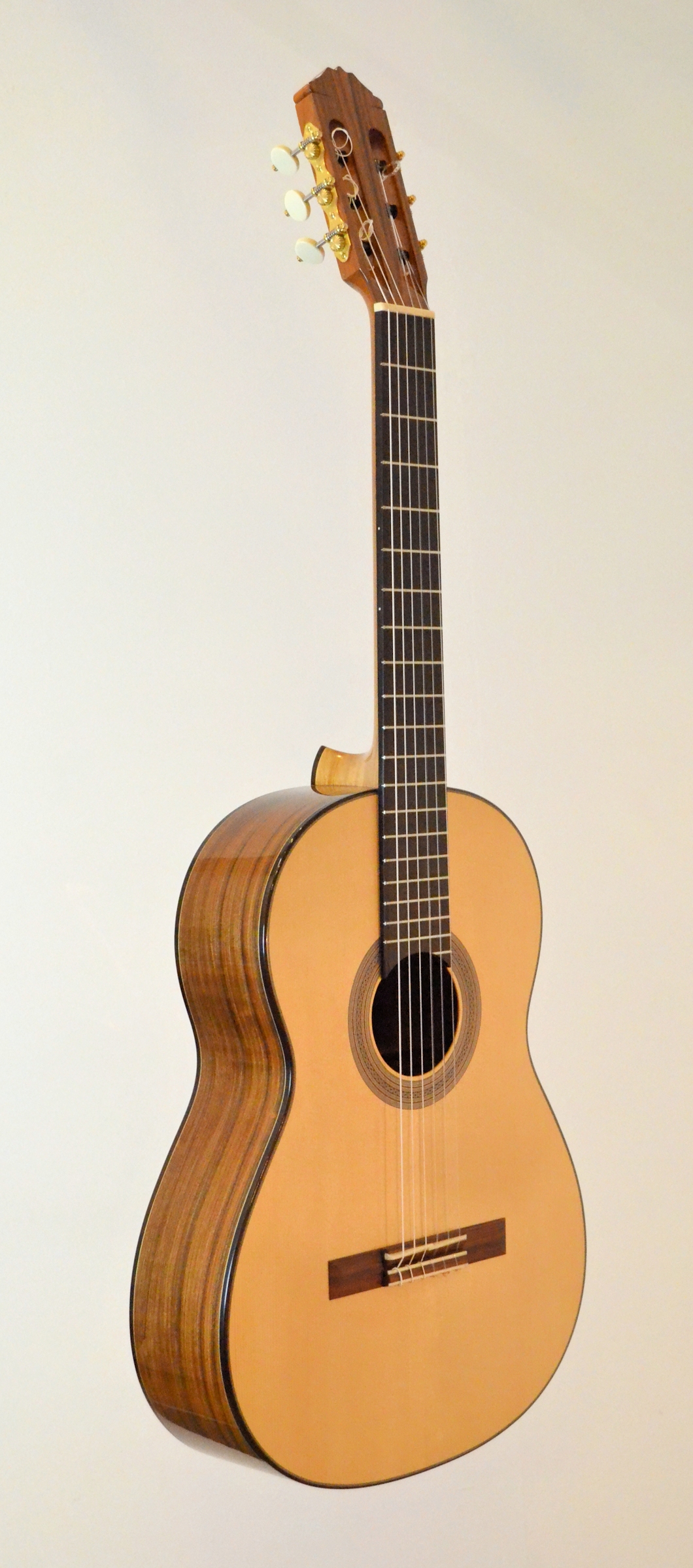

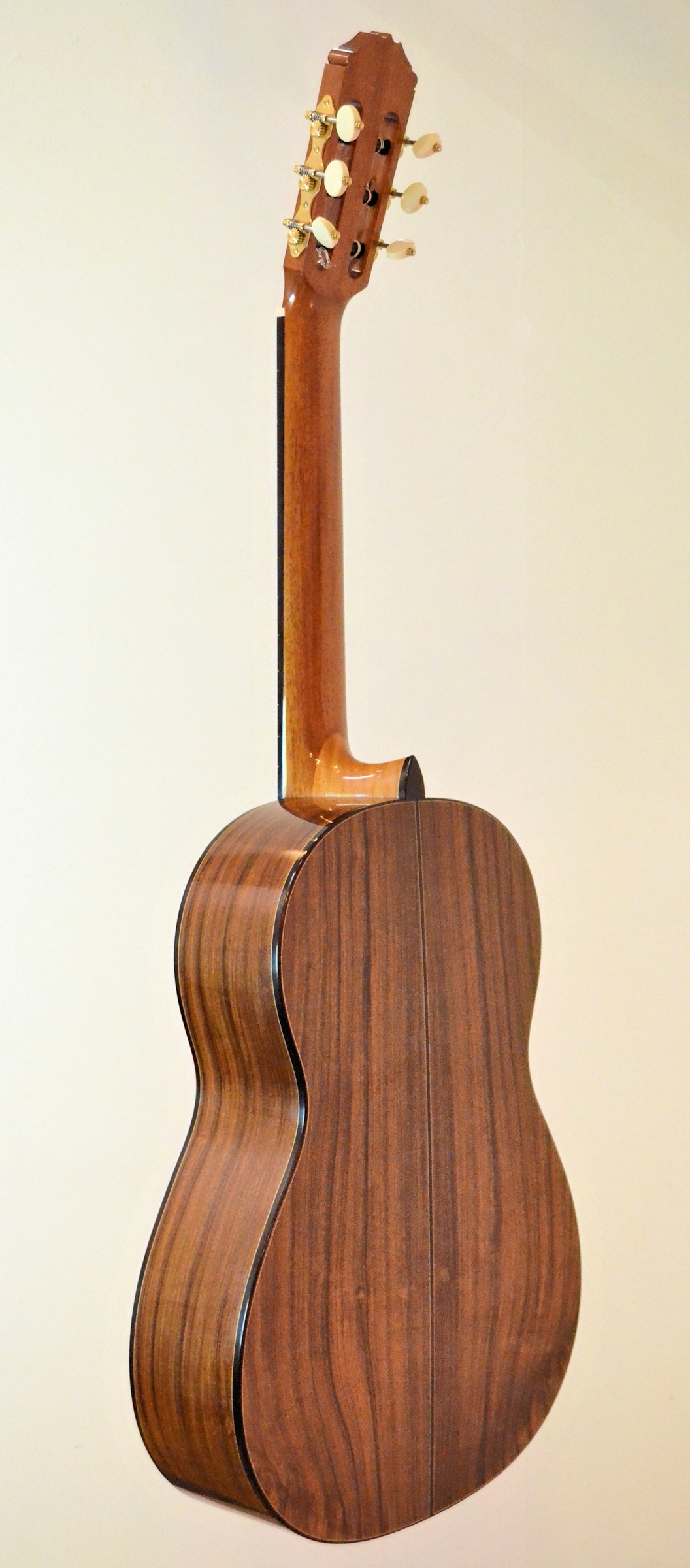

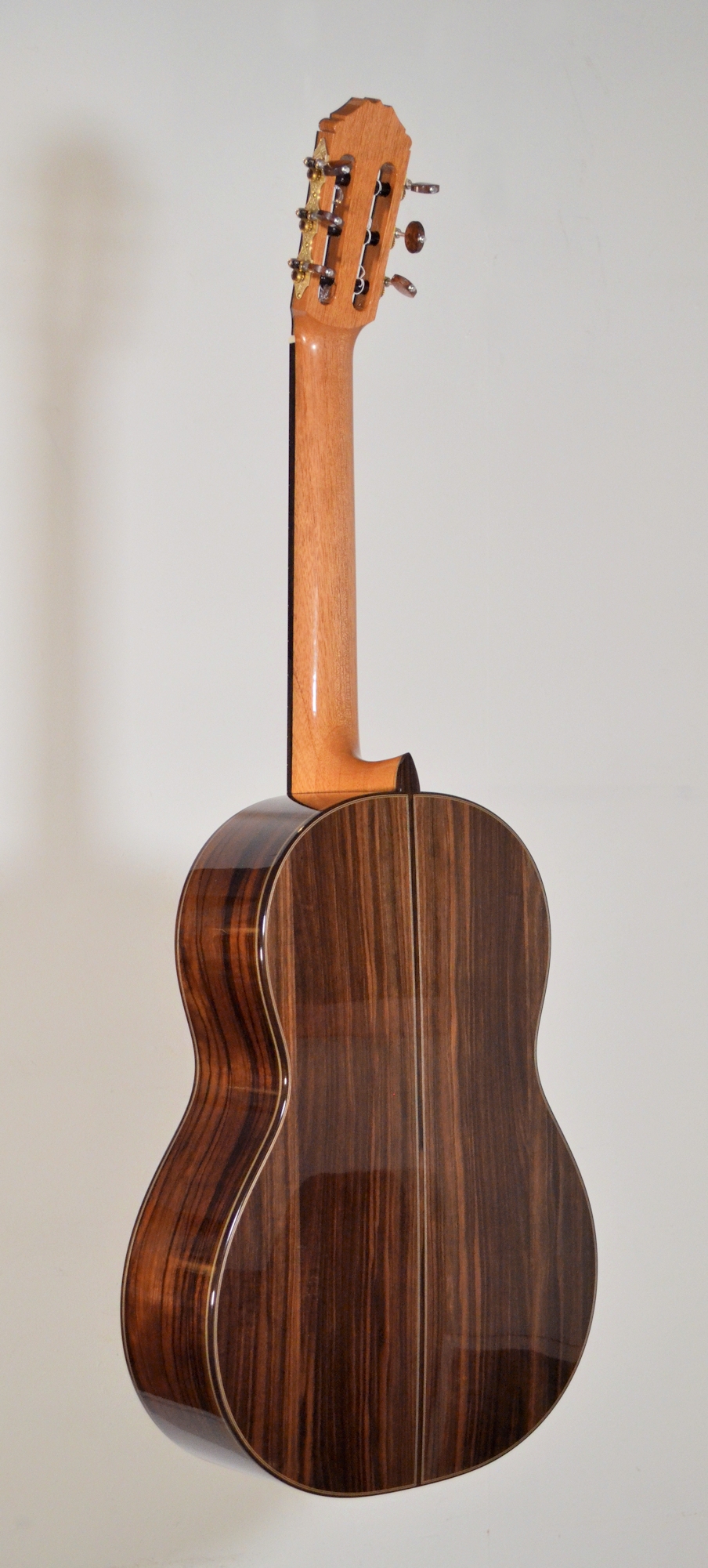

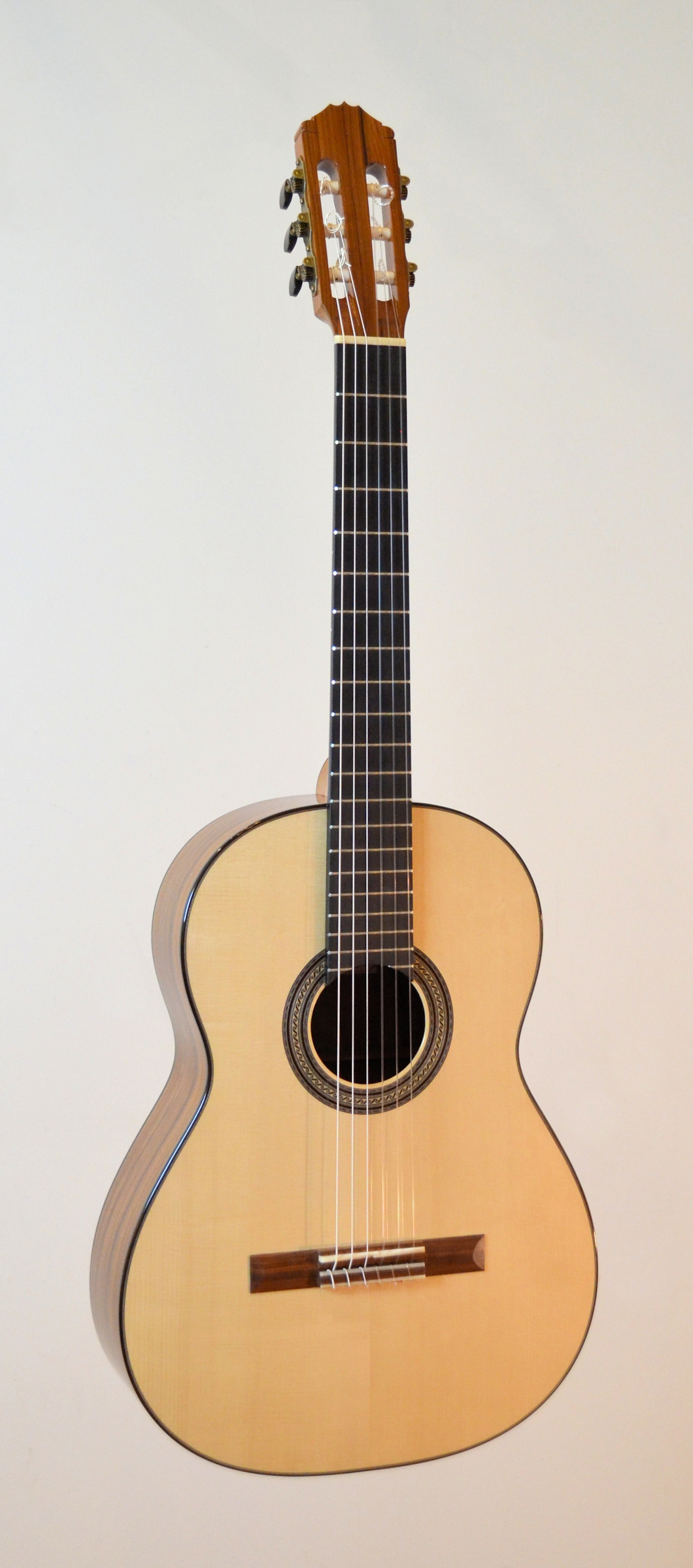

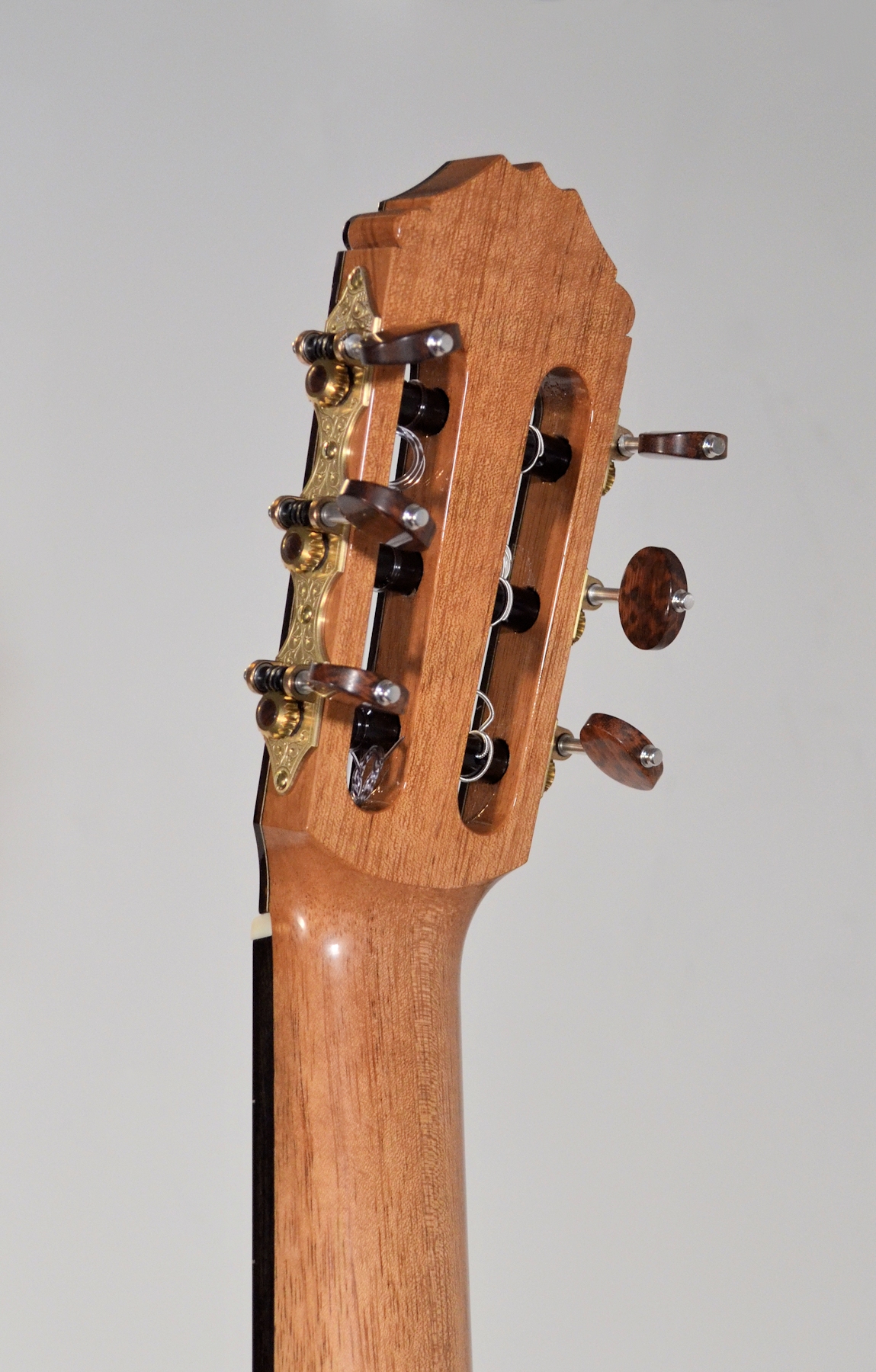

Granada Model (since 2017)

My use of the title Granada requires an explanantion and a grain of salt. This model is in no direct way influenced by what is sometimes called the Granada school of guitar making, for there is actually no such thing in any organized way. The makers of Granada come from diverse backgrounds and all follow their own design principles, not necessarily similar to each other's. What one can say in general is that since the mid 80's, the best instruments of Granada (significantly influenced by those of Antonio Marin after his association with Robert Bouchet) reflect a break from the larger mid to late 20th C. Madrid instruments, evidencing rather a re-examination of the origins of the modern guitar and the principlies established by Torres and others.

Having been originally influenced by Spanish guitars of the 60's and 70's, I later experienced the same kind of evolution and renewed understanding of older traditional guitars. When I returned to building again in Berlin (my own second epoch beginning 2009), I began to base my designs more closely on the principles of Torres and the generation of makers who followed him into the early 20th C. In this way, I think it is appropriate to use name "Granada" to indicate the direction I took in arriving at this model. The Granada model uses my own plantilla, developed over a long career and revealing a mixture of elemental shapes of Torres, Hernandez and others. I have also returned to a simpler architecture and internal bracing reflective of Torres. The result is a lightly made guitar of exceptional clarity, definition, response, power and sustain with a rich and complex pallet of color and overtones.

click photos to zoom in

An example of this model in Spruce may be heard on the following video: Video: Goran Krivokapić performs Vals Venezolano No. 3 by Antonio Lauro

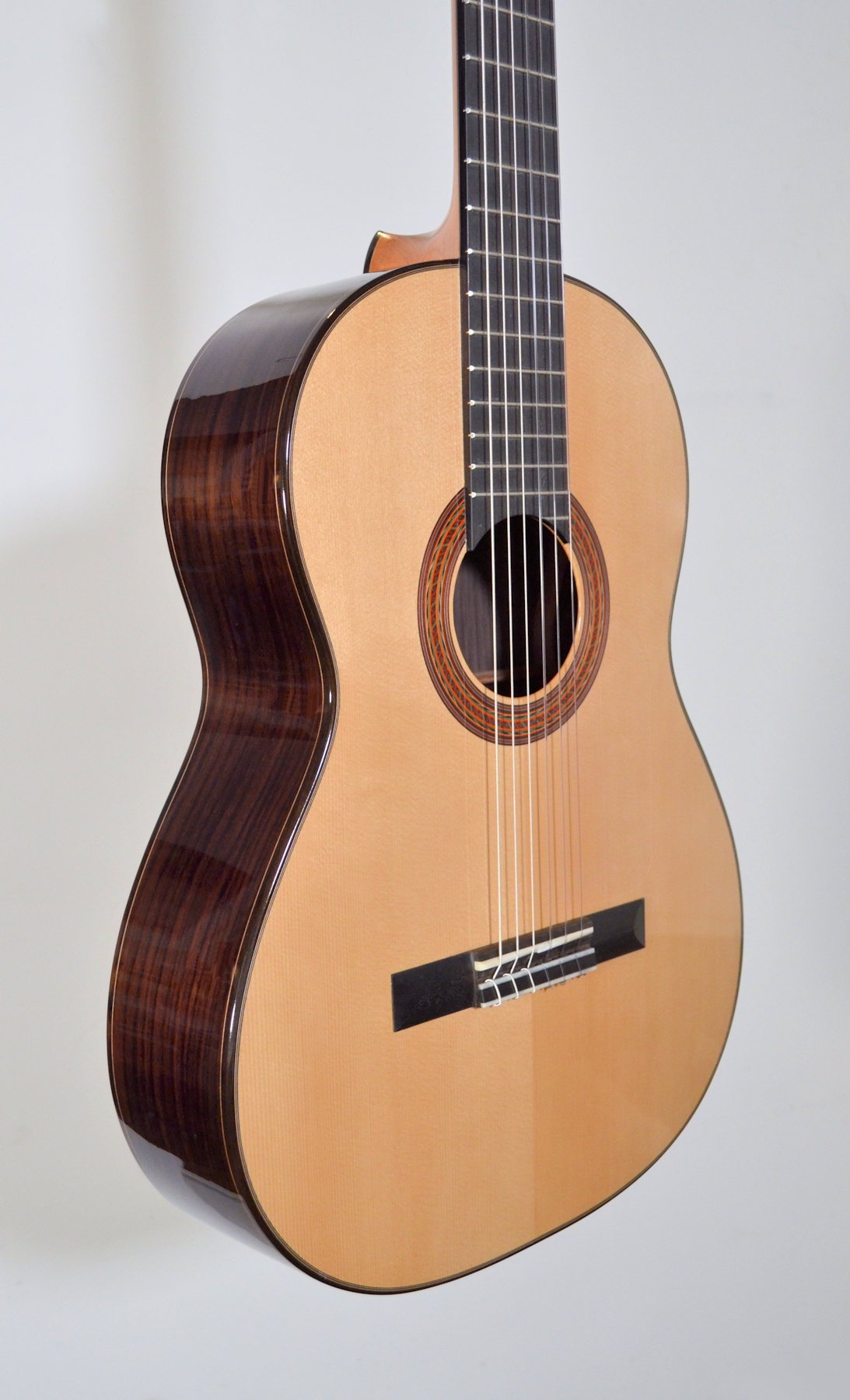

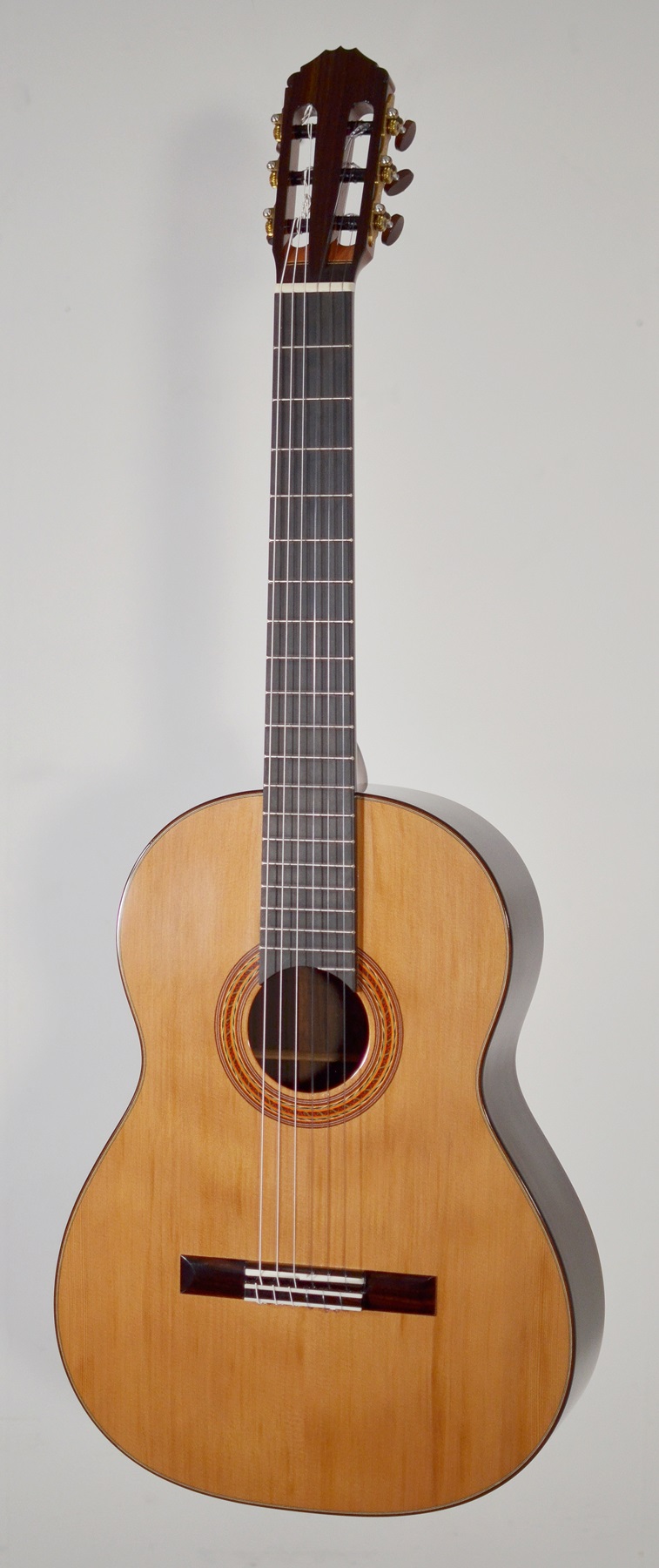

Santos Hernandez Model (since 2019)

The Hernandez model was developed in the beginning of 2019. The plantilla and other elements of the construction are based on a 1931 Santos Hernandez which belonged to the Romero family - possibly originally to Celedonio but eventually to Pepe Sr., who reputedly played this instrument for Pepe Jr. when he was in the womb and after his birth, thus "playing" him into this world. The Hernandez, like the Granada model, offers exceptional power, definition, sustain, and brilliance combined with a very Spanish flavor, and with an explosive quality in attack. My flamenco guitars are also based on the instruments of Santos Hernandez, who was well known additionally for his excellent flamenco guitars.

click photos to zoom in

An example of this model with Cedar double-top may be heard on the following video: Video: Julia Trintschuk plays "Berliner Tango" by Sebastian Pecznik

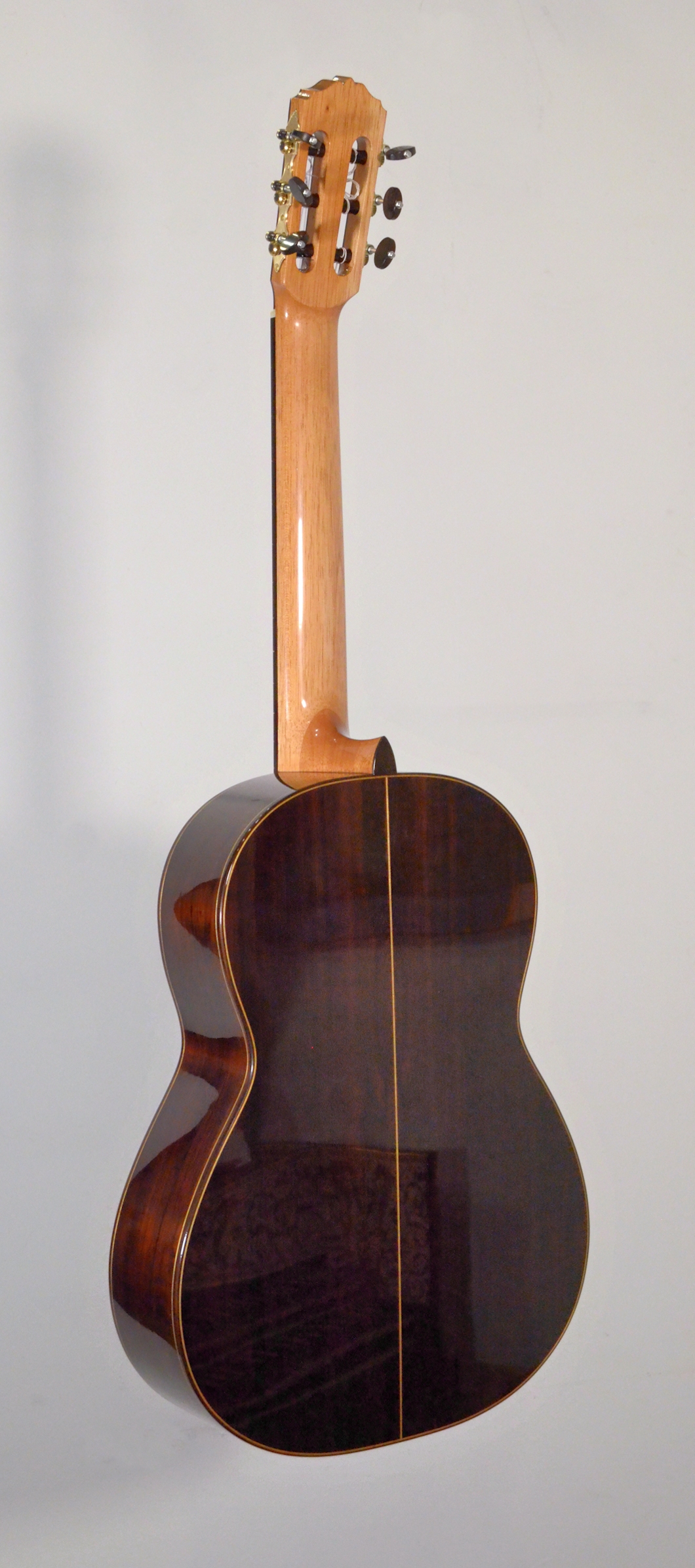

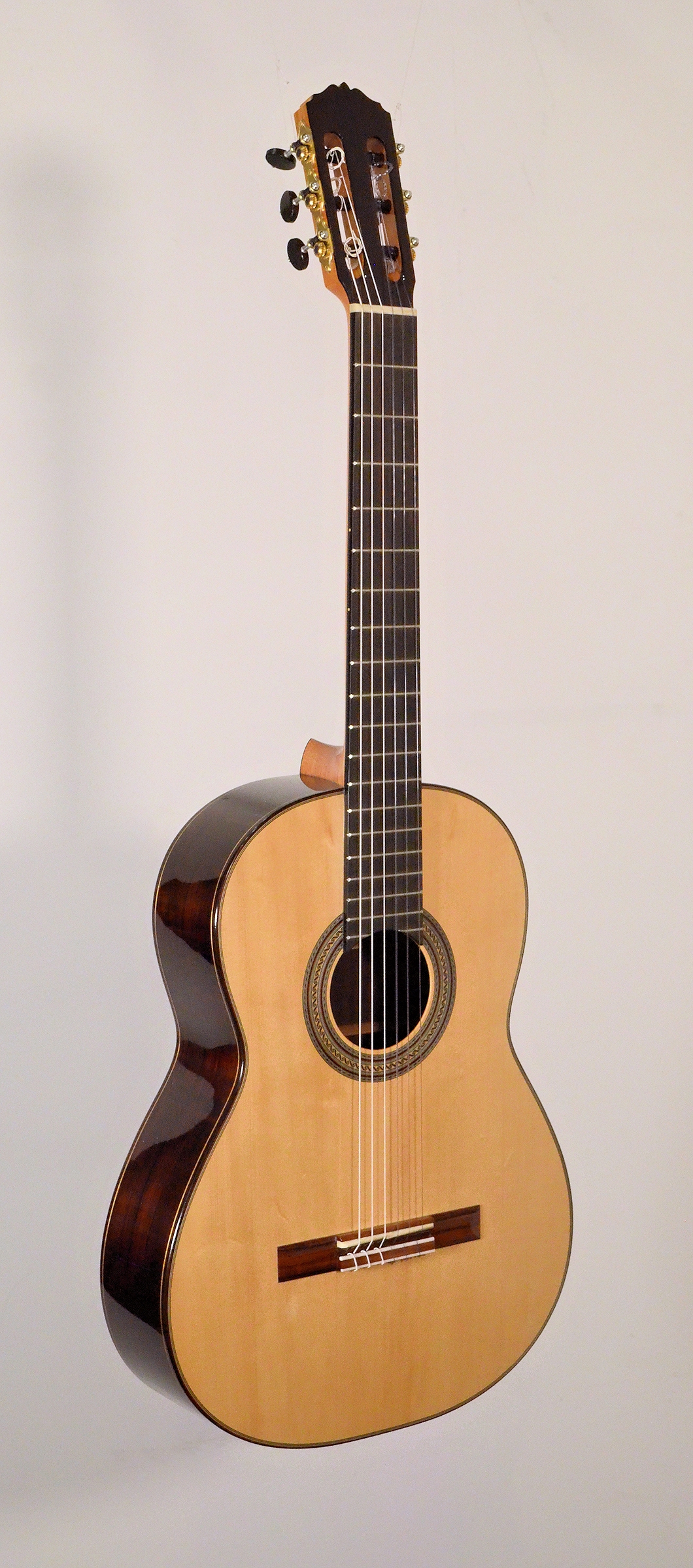

Manuel Ramirez Model (since 2021)

The Ramirez model was developed in late 2021 as a project I undertook to reproduce 2 additional historic guitars (besides the Hernandez model) which are an important part of the heritage from which my building derives. This model is a very faithful reproduction of the Manuel Ramirez classical of 1912 (ascribed in large part to Santos Hernandez when he worked in the shop of Manuel), which was presented to the young Segovia and was later the basis for the guitar made for him by Hermann Hauser I. My Ramirez model follows the architecture, internal bracing, weight (and resulting wood thicknesses), as well as the general decorative and aesthetic aspects of the original, thus offering a close rendition of what the original might have looked, played and sounded like when it was new. Like the later Hernandez guitars made under his own label, this Ramirez model is bright and incisive, with excellent balance, clarity and an explosive attack.

click photos to zoom in

An example of the instrument shown may be heard on the following video: Video: Nelly von Alven: "Nocturne" by Rossen Balkanski

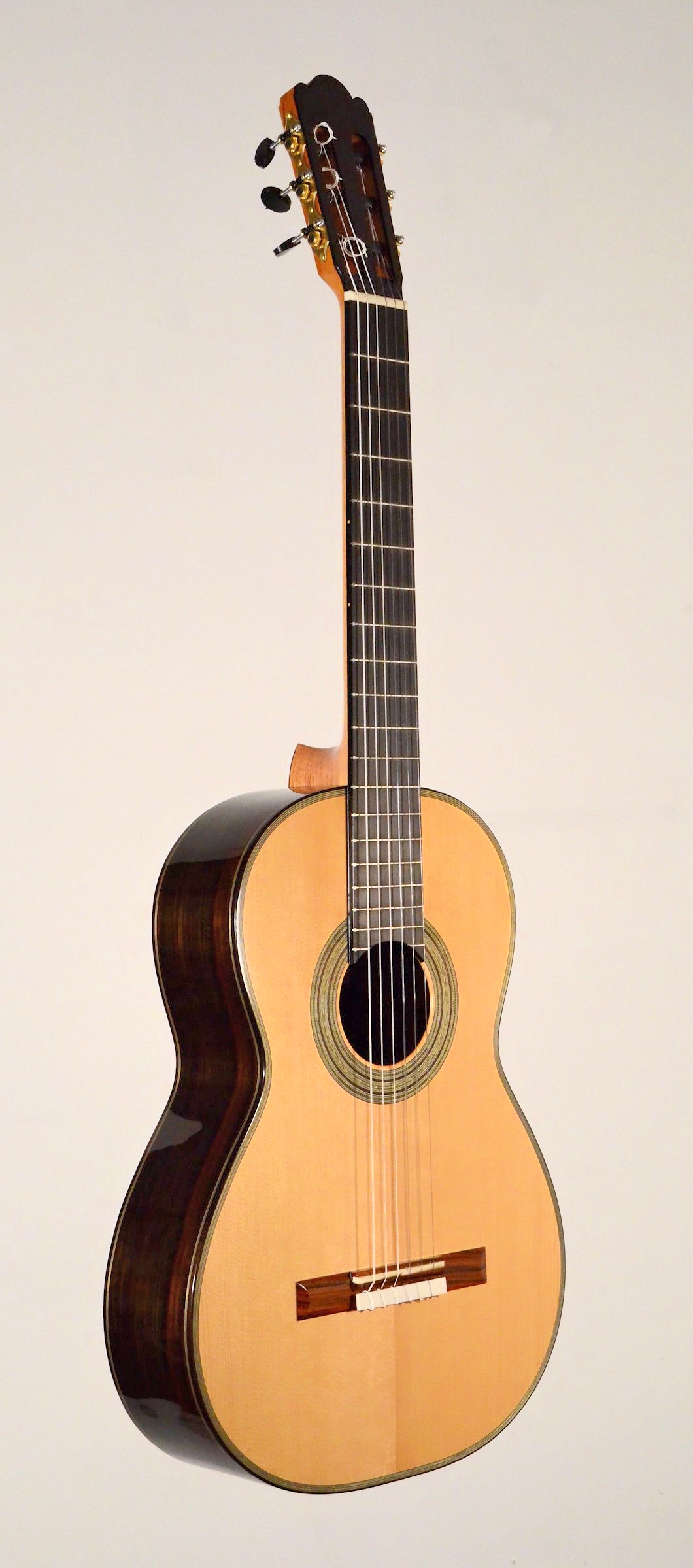

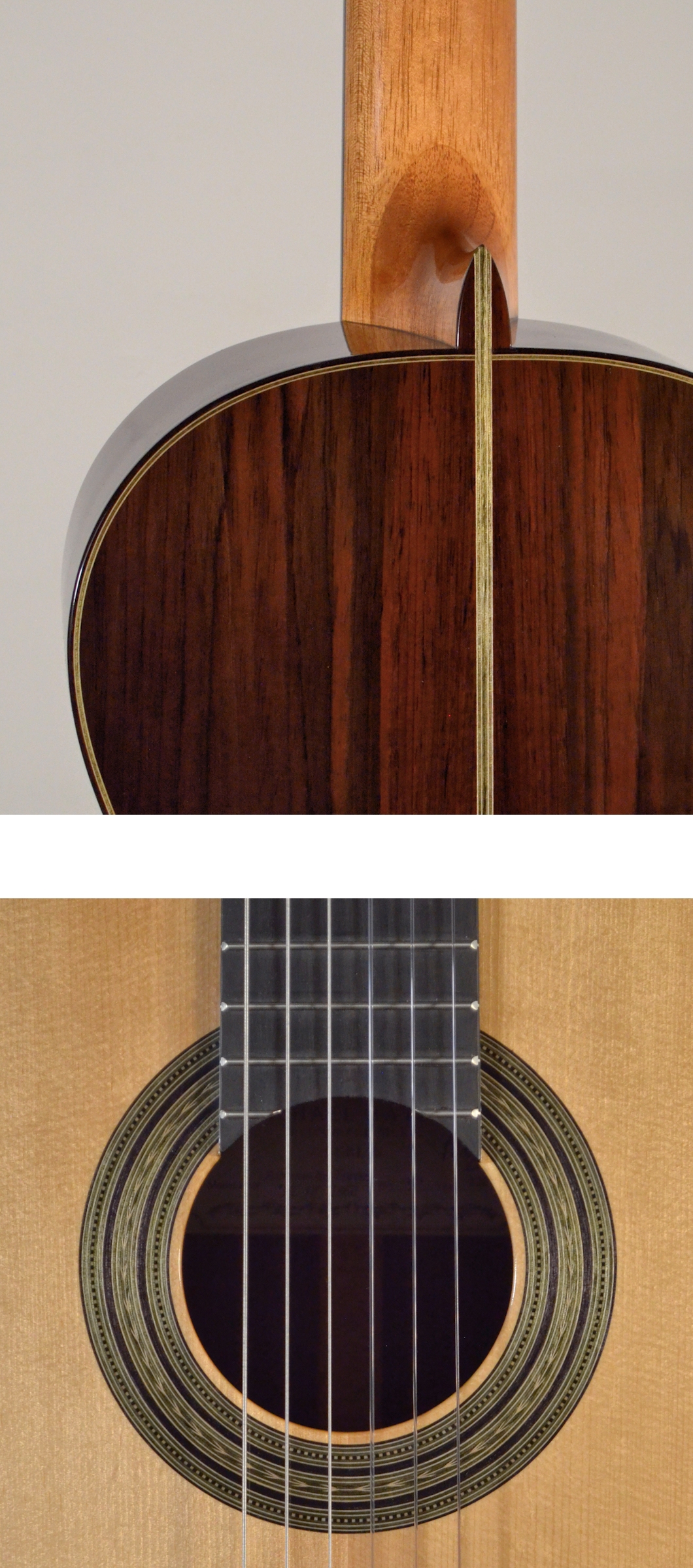

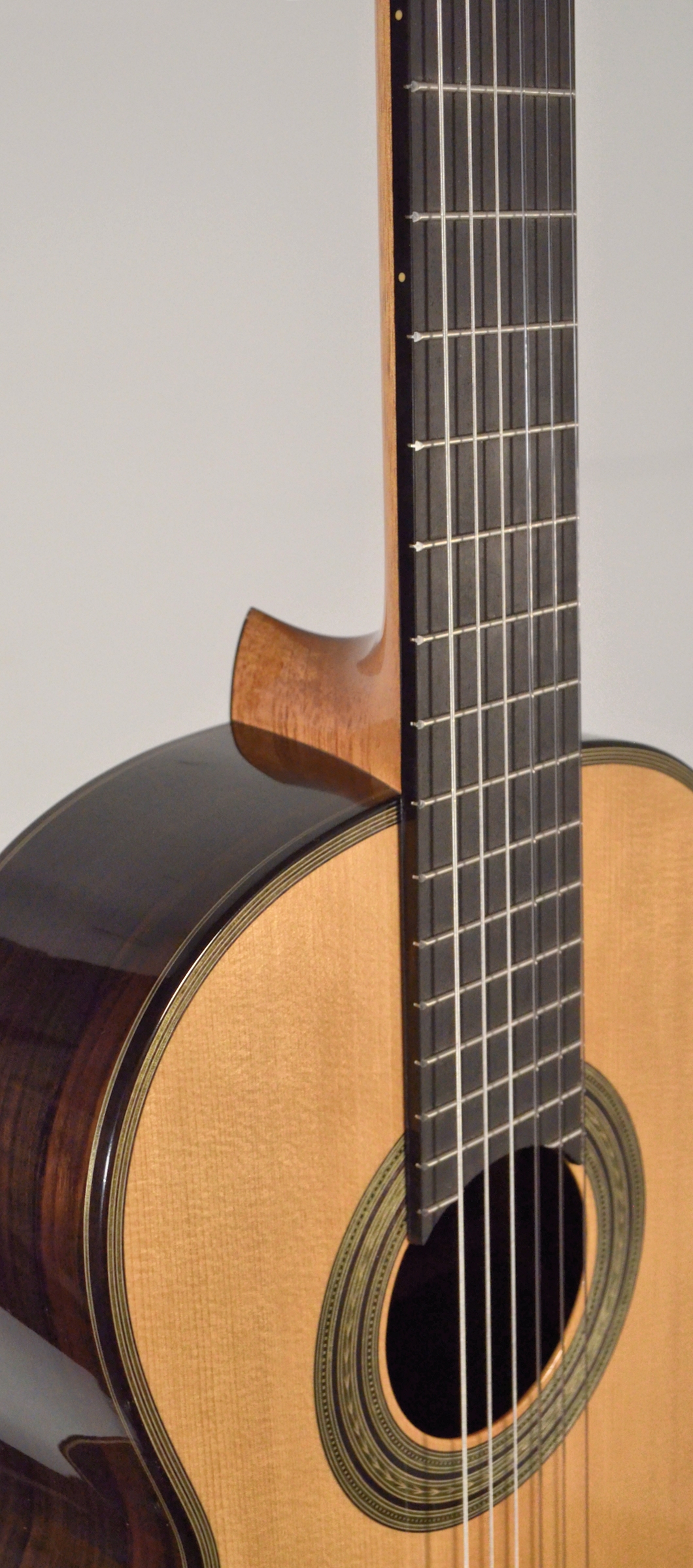

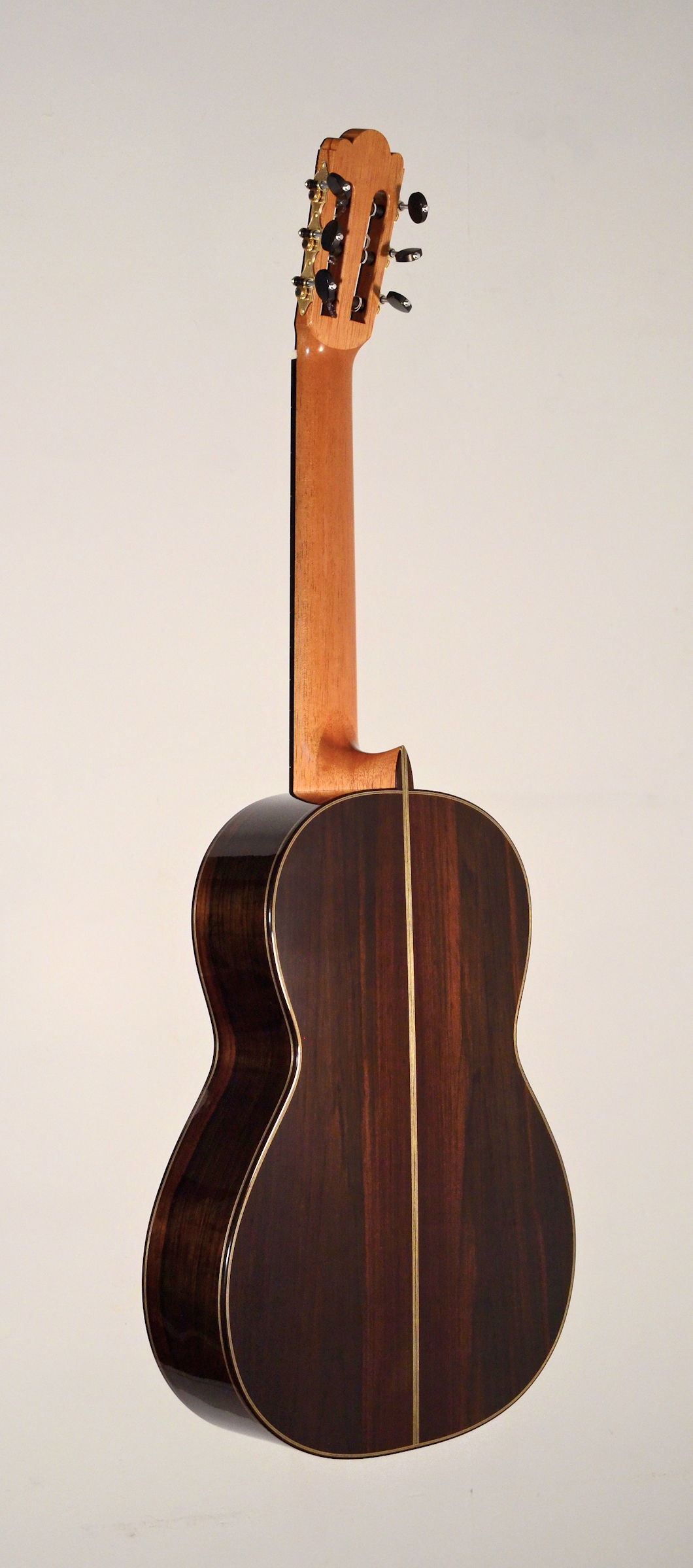

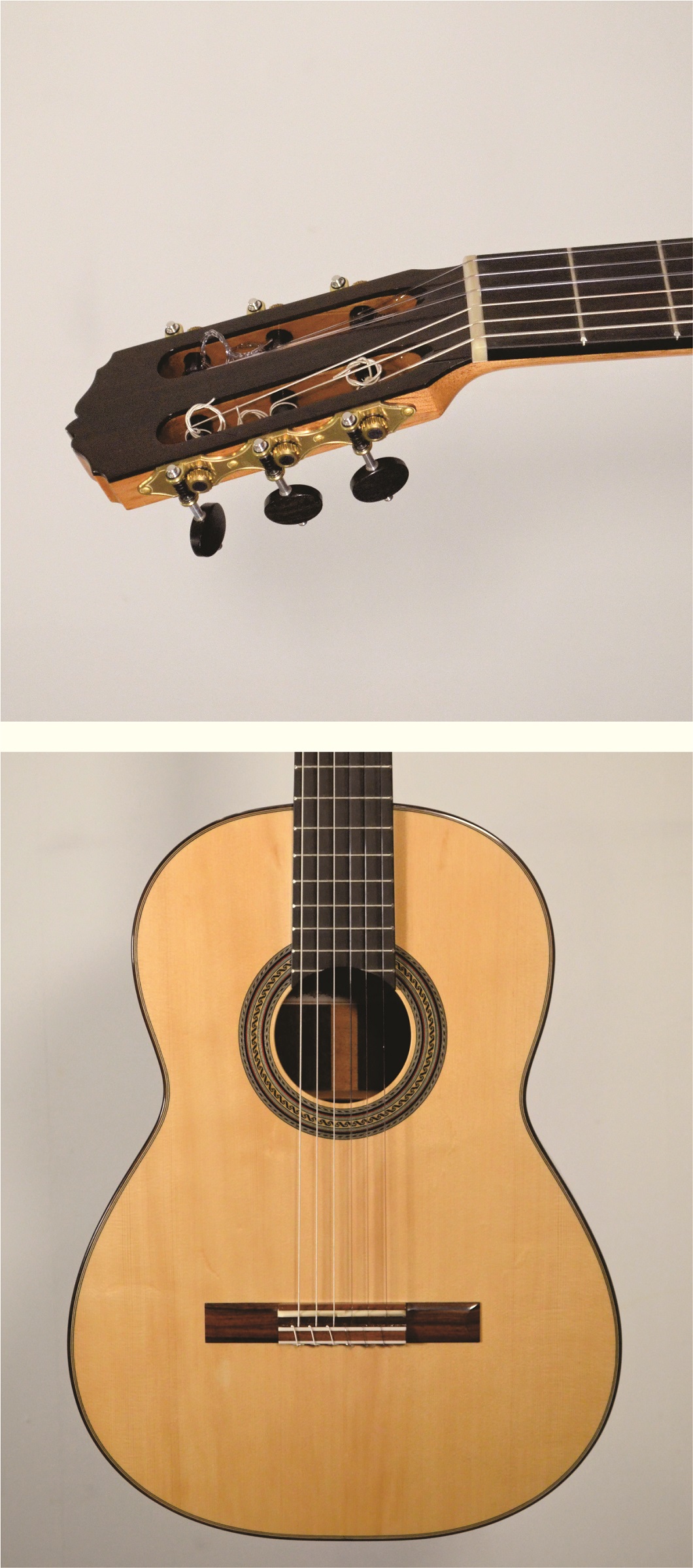

Antonio de Torres Model (since 2021)

The Torres model was developed in late 2021 as part of the project I undertook to reproduce 2 additional historic guitars (besides the Hernandez model) which are an important part of the heritage from which my building derives. This model is a very faithful reproduction of the 1860 Antonio de Torres guitar, reference number FE13, which was one of the Torres guitars owned by Miguel Llobet and which later came into the hands of Hermann Hauser I, subsequently becoming the basis for many of Hauser's own models. My version precisely follows the architecture, internal bracing, weight (and resulting wood thicknesses), as well as the decorative and aesthetic aspects of the original Torres, thus offering a close rendition of what the original might have looked, played and sounded like when it was new. The instrument possesses a lush and clear sound, with excellent balance, power and sustain, and a tonality distinctly evoking an older era.

click photos to zoom in

An example of the instrument shown may be heard on the following video: Video: Luiz Mantovani, performing Anton Diabelli - Sonata in F, Op.29, No. 3 - 2. Andante sostenuto

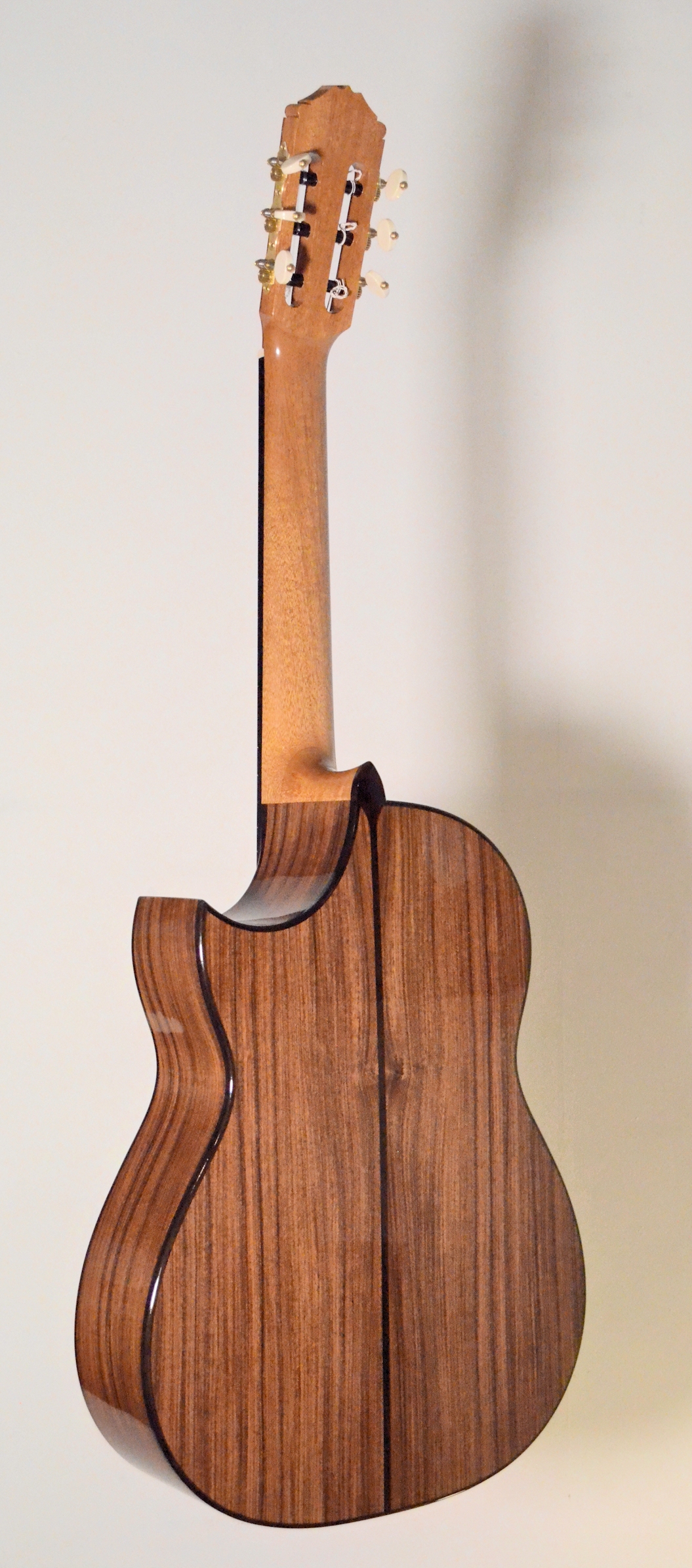

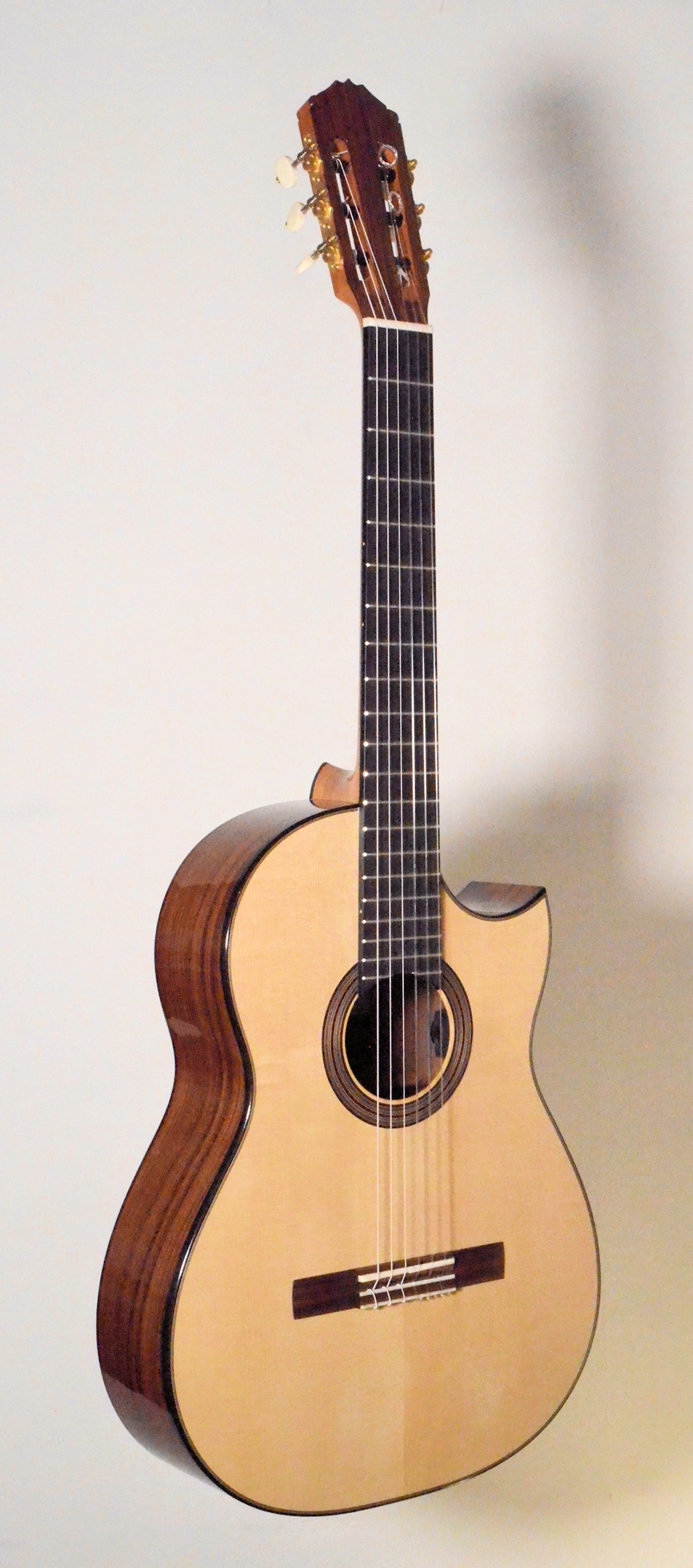

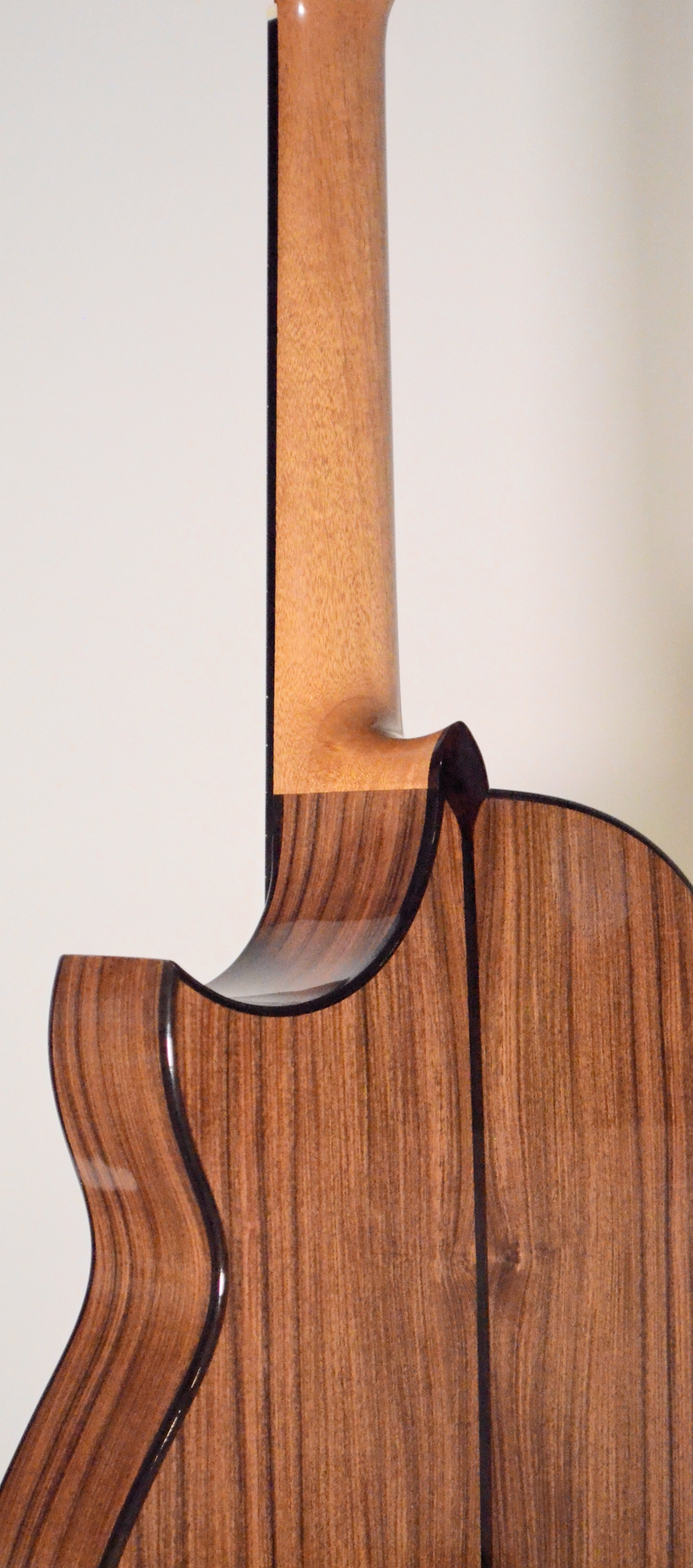

Classical Crossover Model (since 2020)

The Classical Crossover model is designed for the stage artist who needs to play plugged and with modern jazz ensembles. It has a cut-away side enabling easier fingering in upper positions for finger-style and new music. This instrument is typically also provided with a high-end blend pick-up system (piezzo and mic) and on-board preamp. These instruments are nonetheless still constructed in traditional Spanish method, with volume, response, balance and clarity ideal for unamplified concert performance. They are still based on one of my historic or modern models (Ramirez, Hernandez, or "Granada"), and can be constructed according to the artist's preferences of tonality and playability.

click photos to zoom in

An example of the instrument shown may be heard on the following video: Video: Fabian Zeller, performing "Marceneiro Paulo" by Helio Delmiro


Instruments currently for sale

2022 Batell Spruce, Santos Hernandez model
2022 Batell Cedar, "Granada" model
2020 Batell Flamenco, Santos Hernandez model, #95
2020 Batell Spruce, "Granada" model, #97

Available:

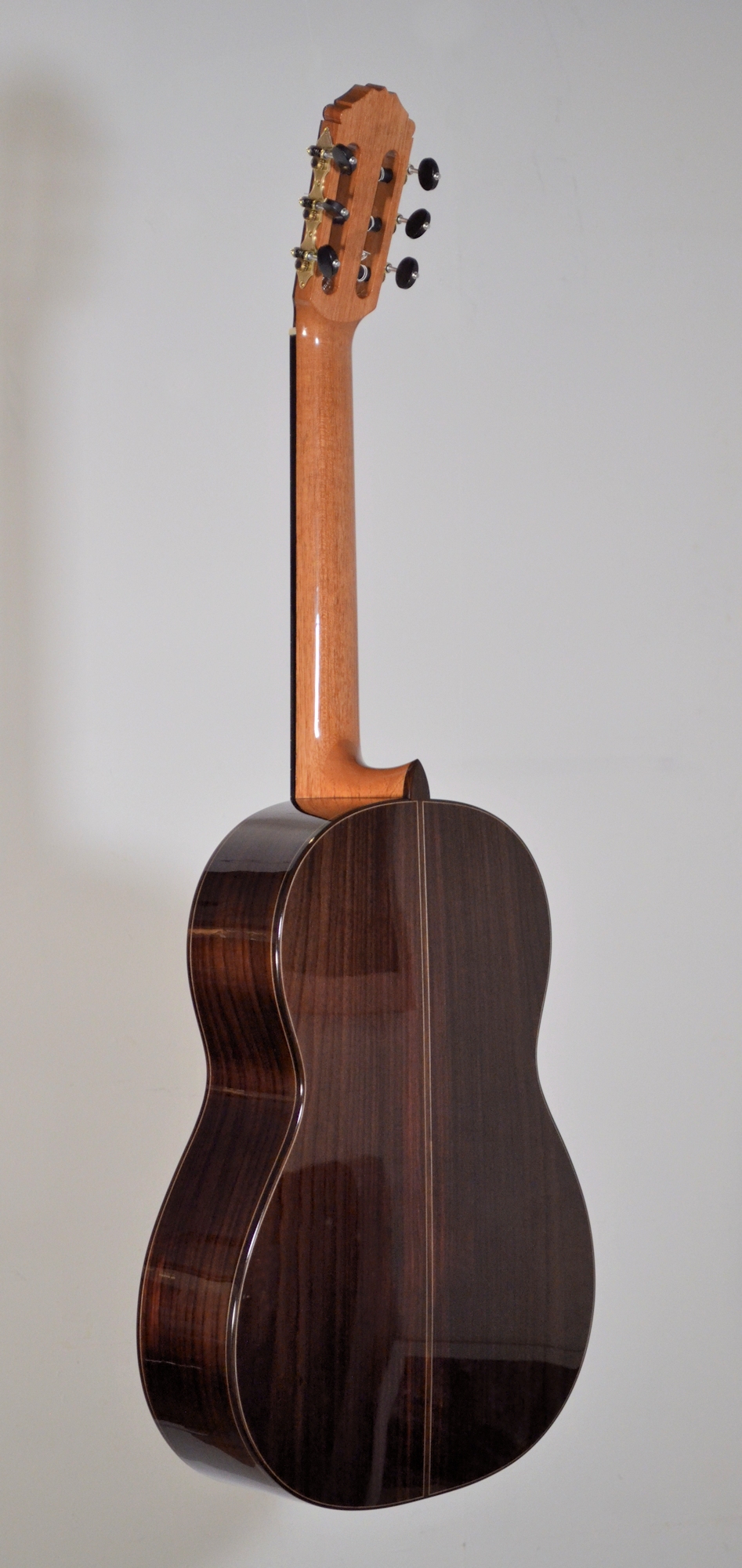

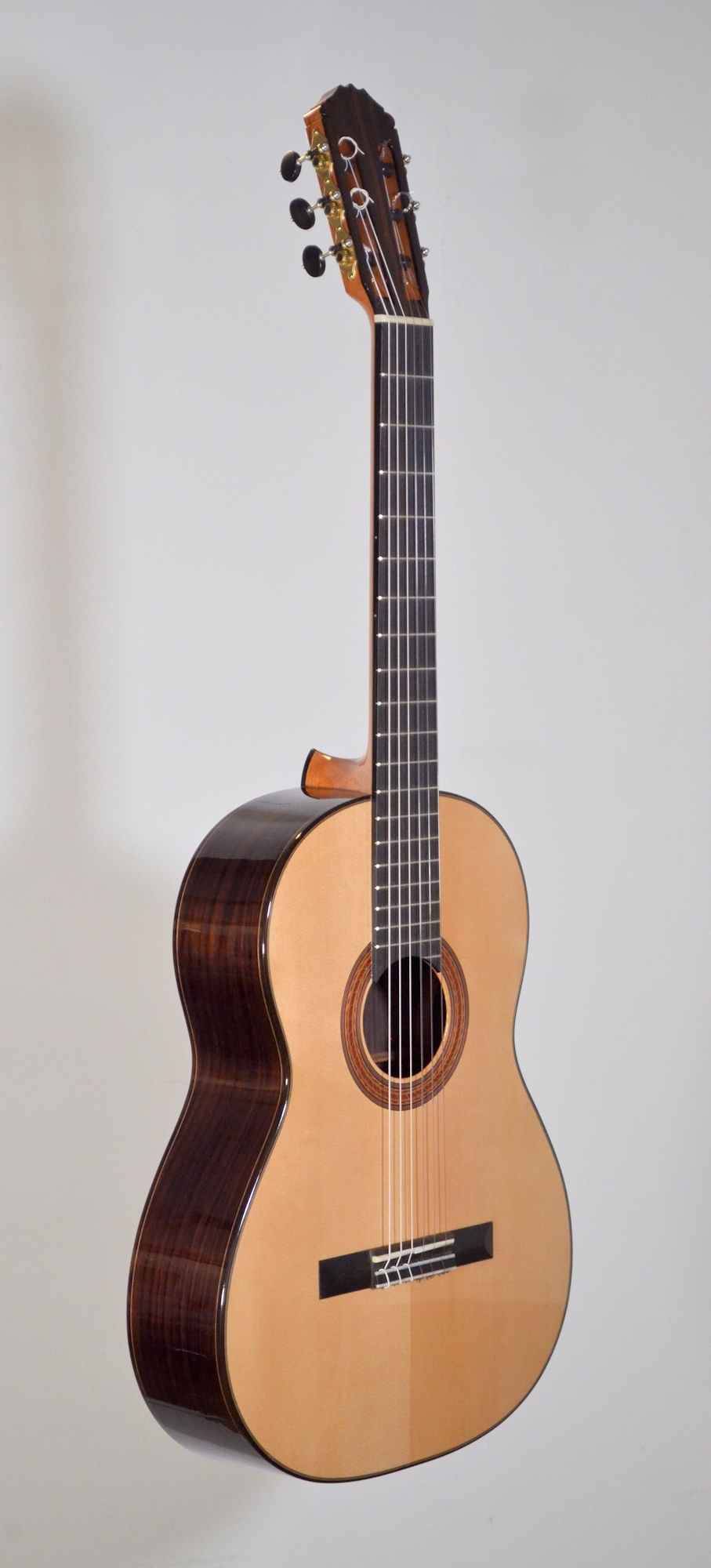

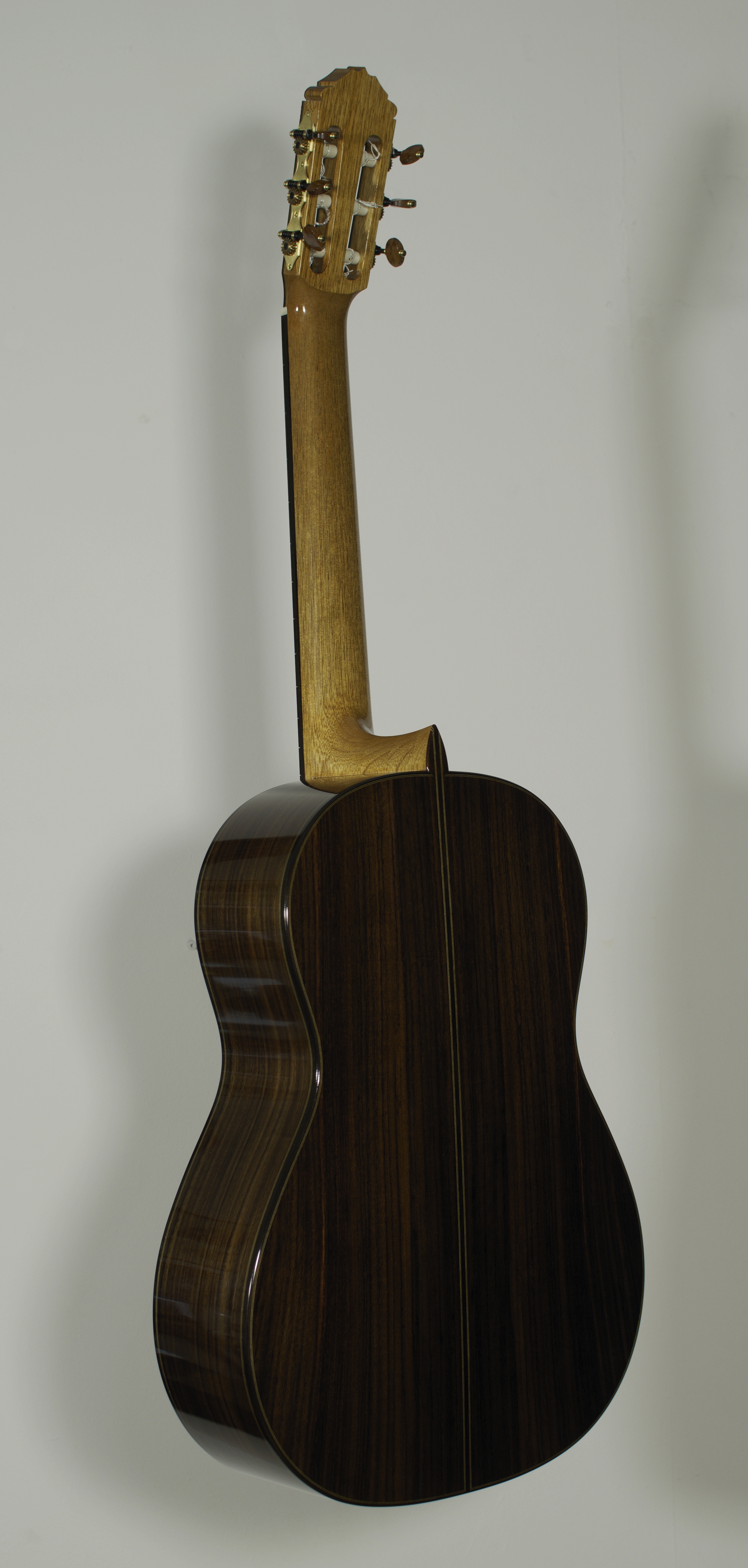

2022 Batell Spruce, Santos Hernandez model

(Hernandez and Granada models like this may be ordered.)
  • Soundboard: Spruce
  • Back & Sides: Indian Rosewood
  • Neck: Spanish Cedar
  • Fingerboard: Gabon Ebony
  • Tuners: Barnett brass w/ Ebony
  • Weight: 1450 grams
  • Neck width at nut, at 12th fret: 52.5, 62
  • String lenght, spacing at nut-bridge: 650, 42.5-59
Inquire for price

This instrument, constructed in the Spanish tradition, after a Santos Hernandez of 1931. The rosette is also after a typical Santos Hernandez style. Its response is explosive, with exceptional power, clarity, and ease of playing.

This guitar will be exhibited at 26. Aalborg Guitar Festival & Competitions, 11-19 November, 2023 - see exhibition page for details.

The guitar may also be heard on the following video:

Video: Julia Villarroel performs "Saudade No. 3" by Roland Dyens


click photos to zoom in


Gallery/workshop visits are welcome, please call or email for appointment.



Available:

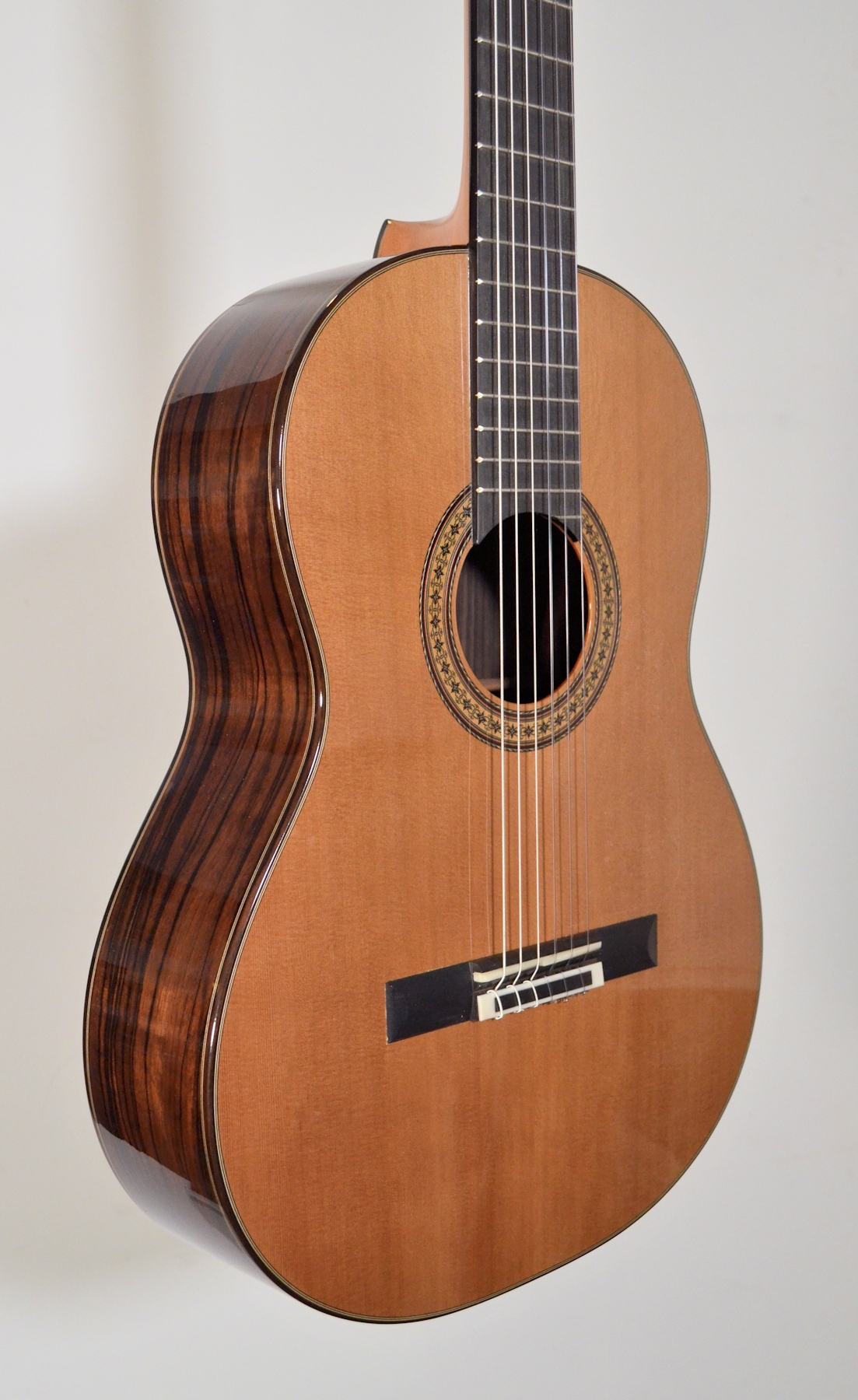

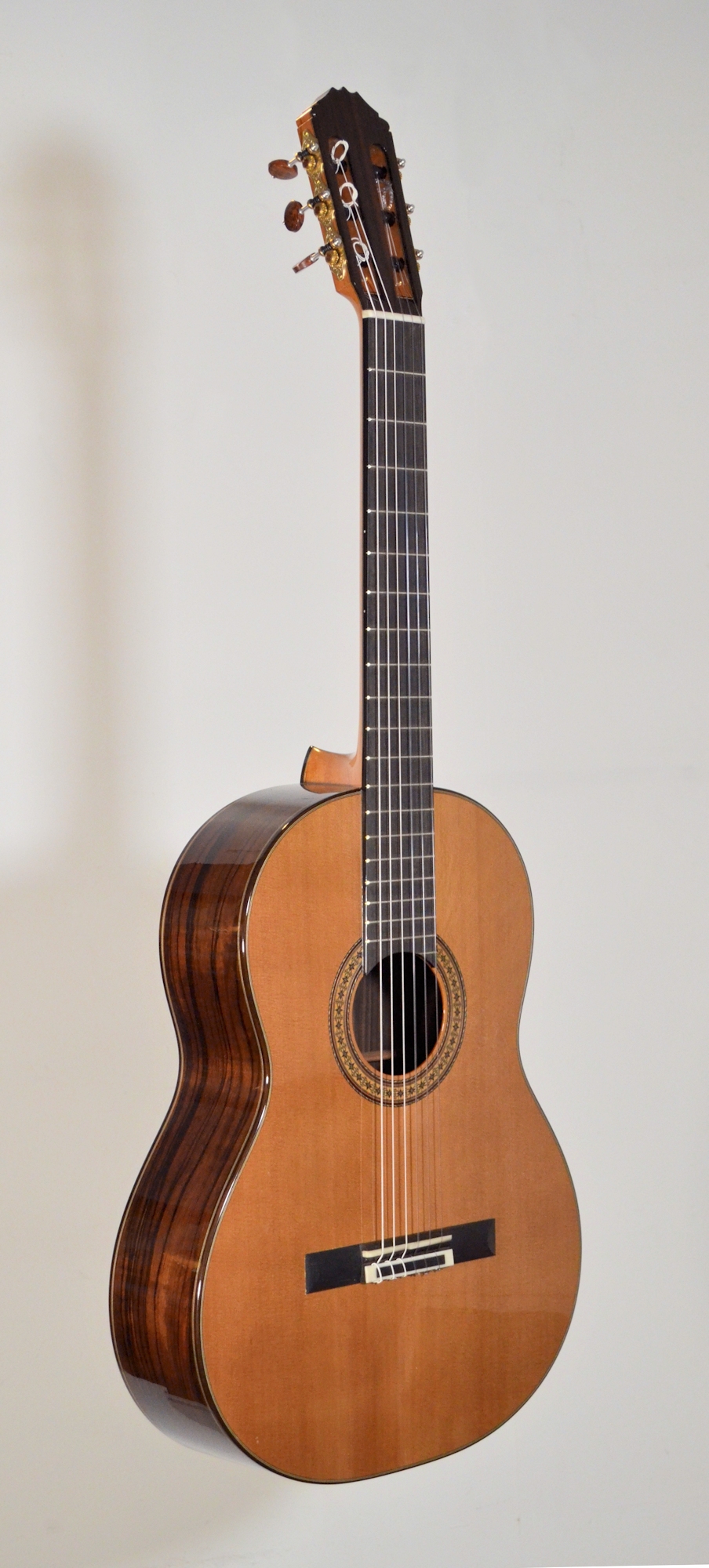

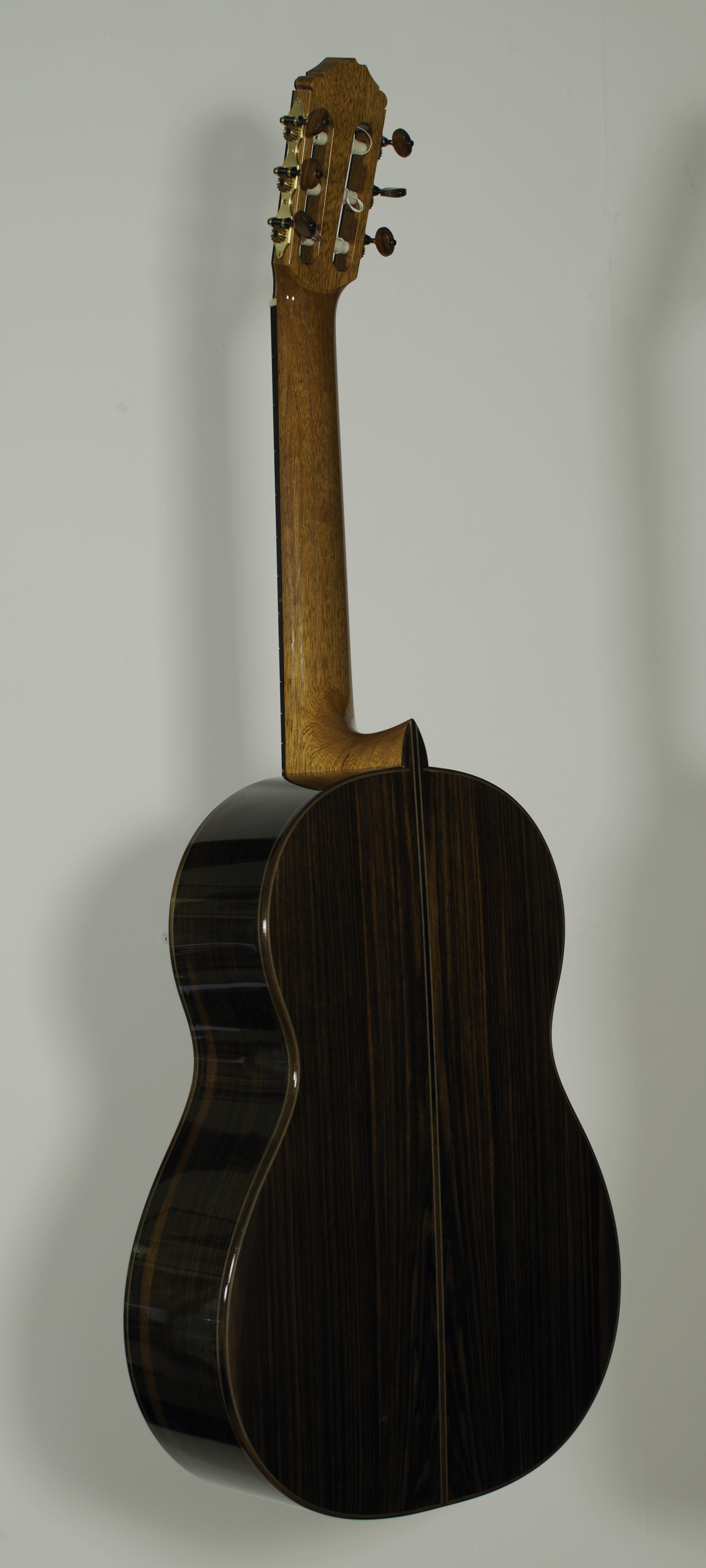

2022 Batell Cedar, "Granada" model

(Hernandez and Granada models like this may be ordered.)
  • Soundboard: Cedar
  • Back & Sides: Makassar Ebony
  • Neck: Spanish Cedar
  • Fingerboard: Gabon Ebony
  • Tuners: Barnett brass engraved w/ Snakewood
  • Weight: 1515 grams
  • Neck width at nut, at 12th fret: 52.5, 62
  • String lenght, spacing at nut-bridge: 640, 42.5-57
Inquire for price

This instrument, constructed in the Spanish tradition, is a slightly smaller version of my own "Granada" model, approximately comparable to the Manuel Ramirez in size. Its response is effortless, with exceptional power, clarity, and ease of playing.

This guitar will be exhibited at 26. Aalborg Guitar Festival & Competitions, 11-19 November, 2023 - see exhibition page for details.

The guitar may also be heard on the following video:

Video: Takuya Okamoto: Passacaglia from Sandy's Portrait by Sergio Assad


click photos to zoom in


Gallery/workshop visits are welcome, please call or email for appointment.



Available:

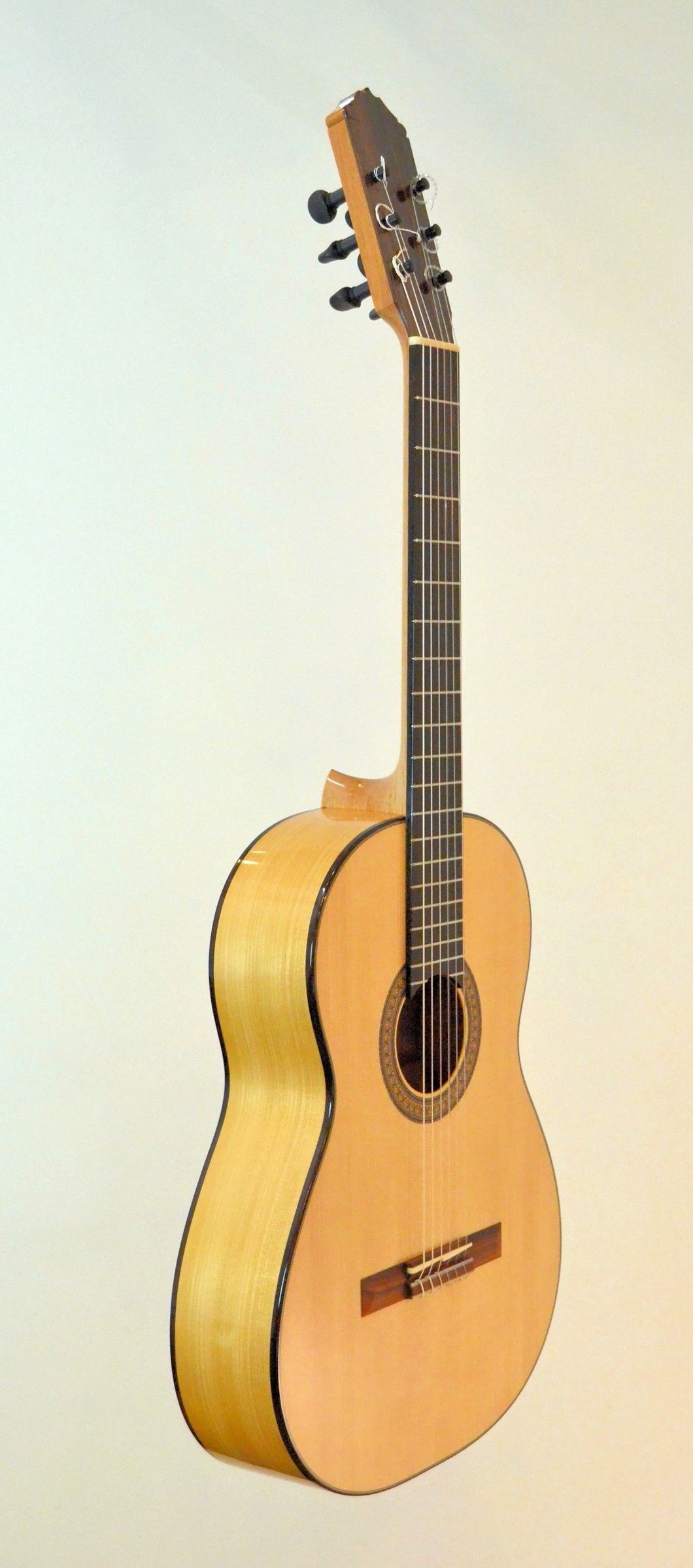

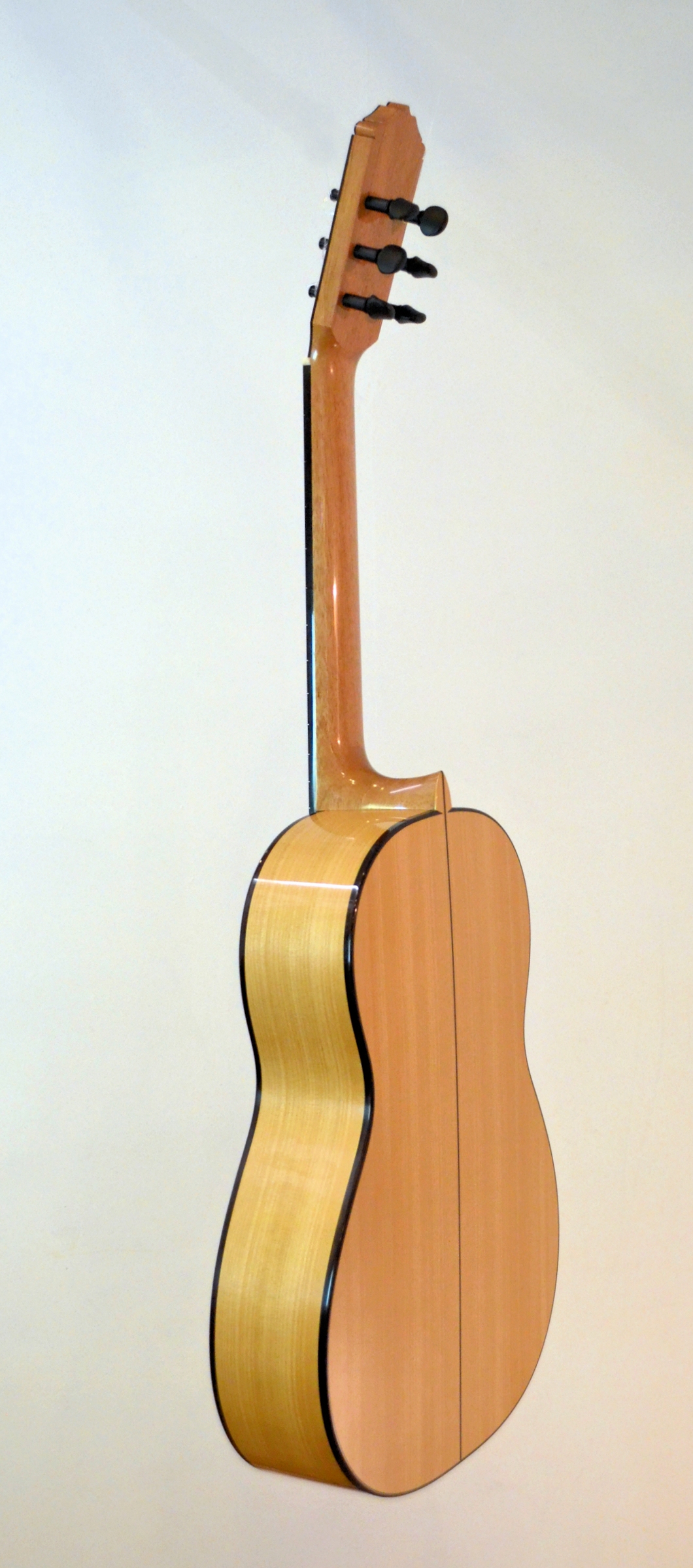

2020 Batell Flamenco, Santos Hernandez model, #95

  • Soundboard: European Spruce
  • Back & Sides: Mediteranean Cypress
  • Neck: Spanish Cedar
  • Fingerboard: Gabon Ebony
  • Tuners: Wittner geared pegs
  • Weight: 1250 grams
  • Neck width at nut, at 12th fret: 52.5, 62
  • String length, spacing at nut-bridge: 650, 42.5-57
Inquire for price

This instrument is constructed in the Spanish tradition, light but strong. It possesses the shattering brilliance expected for authentic Flamenco. The geometry and resulting action are true to Flamenco tradition, the strings excetionally low to both fingerboard and soundboard. Combined with its exposive power, projection and speed of attack, the instrument has remarkable definition. Clarity is exceptional from the deep bass to the highest treble positions.

This guitar may be heard on the following video:

Video: Samuel Beluzán Rodríguez performs "Taranta" by Paco de Lucia


click photos to zoom in


Gallery/workshop visits are welcome, please call or email for appointment.



Available:

2020 Batell Spruce, "Granada" model, #97

650 mm (normal) scale

  • Soundboard: European Spruce
  • Back & Sides: Santos Palisander
  • Neck: Honduran Mahogany
  • Fingerboard: Gabon Ebony
  • Tuners: Perona (Landsdorfer style, ball bearing rollers)
  • Weight: 1552 grams
  • Neck width at nut, at 12th fret: 52.5, 62
  • String length, spacing at nut-bridge: 650, 42.5-59
Inquire for price

This instrument is constructed in the Spanish tradition, light but strong. In addition to excellent sustain, balance and harmonic response it also possesses an extremely wide range of colors. It possesses a lush tonality with fast response, excellent power, projection and sustain, and remarkable definition.

This guitar may be heard in the following video:

Video: Nora Buschmann performs Campanas del Alba


click photos to zoom in


Gallery/workshop visits are welcome, please call or email for appointment.
